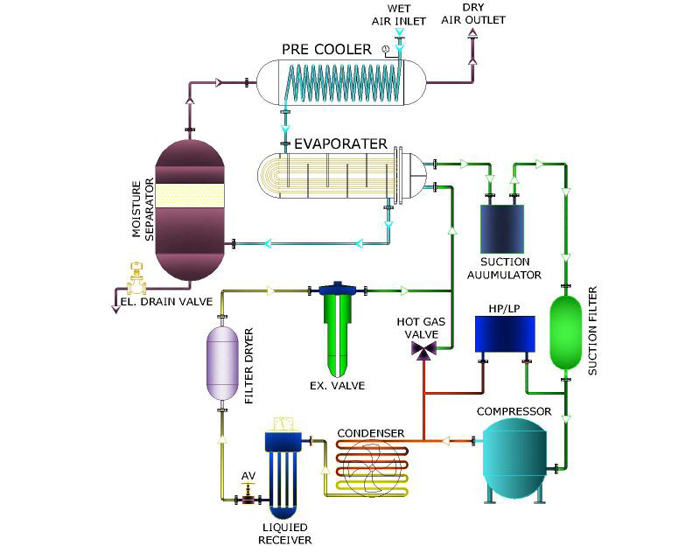

The simplest way of removing moisture from compressed air is to reduce the temperature. In Refrigerated Air Dryer compressed air is passed through a heat interchanger where cold refrigerant at around 3 Deg C is passed through the other side of the heat interchanger. At this temperature most of the moisture is condensed which is then separated and drained out in moisture separator.
Simple Non Cyclic operation
Low operating cost
Zero Purge Loss
Even lubricated air can be dried
Suitable for any capacity
PDP of 3 Deg C
Environment Friendly Refrigerant
